07 · CAPACITY ANALYSIS
Standing room capacity report
Full capacity analysis for the two spaces with a standing component (South Stage and North West Patio). Capacity is calculated from usable area, not gross area, because the narrow depth of both spaces combined with bars, buffets, high-tops, and couches takes a large bite out of actual floor space. The Corner Club and South Field Tables are all-seated and do not require a density calculation; their capacity is fixed by seat count. This report establishes the recommended operational capacity for the two standing spaces, documents the methodology so the numbers are defensible with the front office, and gives the ticketing team a conservative number to plan against before the fire marshal's final word.
Gross area is reduced to a usable percentage, then divided by the appropriate density factor for the space type.
Gross-to-Usable Deductions
The following categories are subtracted from gross area to arrive at usable standing area. These are the reason a 1,989 ft² patio doesn't hold 200 people, most of the gross area is consumed by things guests cannot actually stand on.
01 · Life Safety & Egress
Aisles, exit corridors, exit discharge paths, and clearance zones around emergency exits. Typically 44" minimum clear width for aisles, with required clearance fans in front of exit doors.
02 · Fixed Obstructions
Structural columns, pillars, walls, railings, stanchions, utility risers, HVAC equipment, and electrical panels. 36" clearance required by code.
03 · Service Infrastructure
Bars, concession points of sale, merchandise stands, and the queuing or service zones immediately in front of them.
04 · Production & Operations
Stage or performance area, sound and lighting positions, front-of-house mix positions, camera platforms, and barricade or pit zones.
05 · ADA Compliance
Accessible viewing positions, companion seating areas, accessible routes (36" minimum clear width), and wheelchair turning radii.
06 · Restroom & Utility Access
Clear paths to restrooms, first aid stations, and any required medical staging areas for the event.
07 · Furniture & Equipment
Tables, high-tops, trash and recycling stations, bar carts, buffet stations, couches, and any temporary equipment brought in for the match.
08 · Security & Crowd Management
Buffer zones, search and screening areas, crowd management barriers, and security sight lines.
Industry Density Standards
Industry benchmarks for how tightly a standing crowd can be packed. Premium hospitality sits at the low end of the density scale, the higher the ft² per person, the more premium the experience feels.
| Space Type |
Sq Ft / Person |
Use Case |
| GA / Festival-style |
5–6 |
Tight, shoulder-to-shoulder; concert and supporter environments |
| Standard GA (comfortable) |
7 |
Mixed-use outdoor venues; guests can hold a drink and move |
| VIP / Premium standing |
8–10 |
Premium patios, hospitality decks, rooftop bars |
Usable Area Benchmarks
How much of a patio's gross area is actually usable for guests depends on how much infrastructure is crammed into it. Both premium spaces at GE Vernova Park fall into the bottom bracket because of the bar, buffet, and high-top mix.
| Space Condition |
Usable % of Gross |
| Empty open-air patio (no obstructions) |
80–85% |
| Patio with single narrow entry / exit |
75–80% |
| Furnished premium space (high-tops, couches) |
65–70% |
| Heavily furnished premium (buffet, bar cart, high-tops) |
60–65% |
High-Top Table Footprint
A standard 30" cocktail table occupies roughly 5 ft² of surface area, but each person standing at it claims about 2 feet of depth around them. The real footprint is the table plus a 2-foot ring: a circle approximately 78" in diameter, totaling ~33 ft² of claimed space. A typical high-top accommodates 4 people comfortably, yielding ~8 ft² per person: consistent with premium density standards. Buffet tables (6' or 8') with their serving-side queue lane consume approximately 40–60 ft² each.

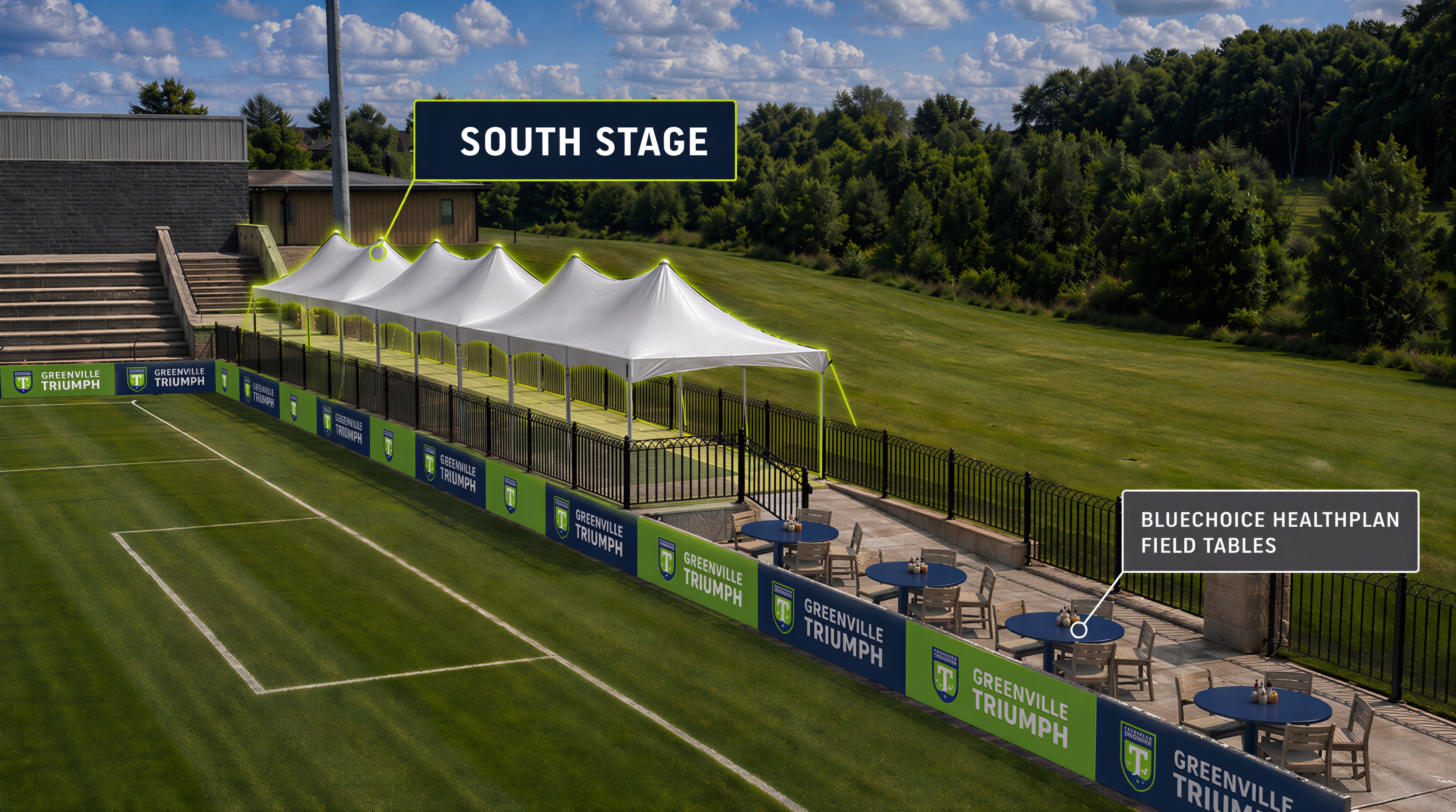

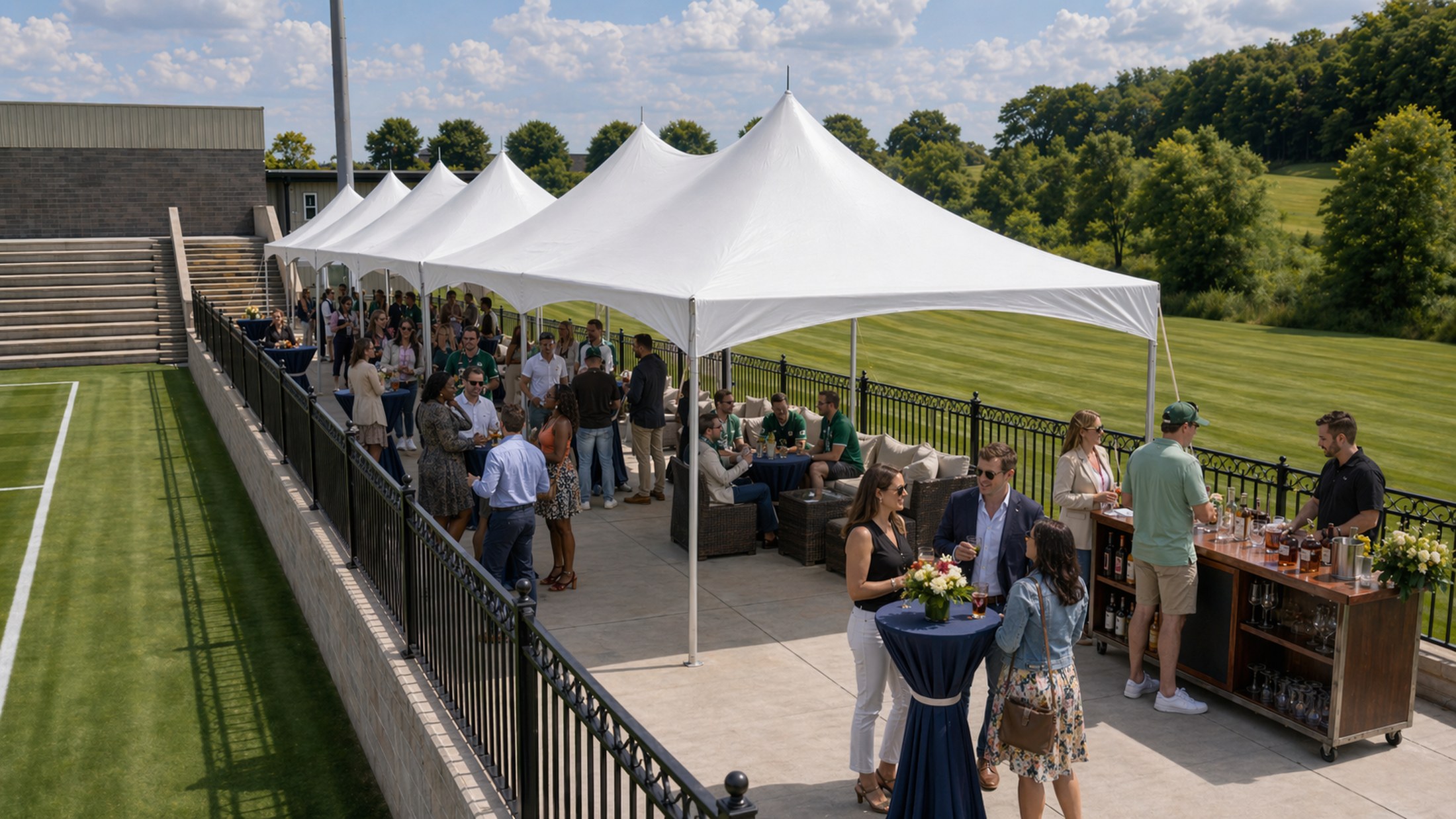

Parameters
| Dimensions |
14'6" × 137'2" |
| Gross Area |
~1,989 ft² |
| Furnishings |
Bar cart, couches, high-tops, buffet |
| Usable Area Factor |
60–65% |
| Density Factor |
10 ft² / person |
Calculation Range
| Usable % |
Usable ft² |
Capacity |
| 60% |
~1,193 ft² |
~119 |
| 65% |
~1,293 ft² |
~129 |
Recommended
Standing Capacity
115–120 people
The narrow 14.5' depth is the primary limiting factor. With couches along one side, buffet along the other, and a bar cart in the mix, the functional movement corridor is reduced to roughly 8–9 feet. This conservative number preserves the premium feel and prevents buffet lines from backing into standing guests.
Architect plan max. The printed SRO footprint of 761 ft² at a 5 ft²/person festival density yields a theoretical max of 152 standing: very tight, achievable only if the stage stays largely empty of furniture. 115–120 is the recommended premium operating number; 152 is the outer bound.
Important: 115–120 is the standing footprint for the stage area itself, the physical limit of how many people can comfortably stand on the stage at one time. It is not the total group size the space can host. Because the South Stage is sold as a flexible private VIP zone layered on top of group ticket orders (paired with section 122), the total number of guests with access can reach 200+ by mixing seated and standing allocations.

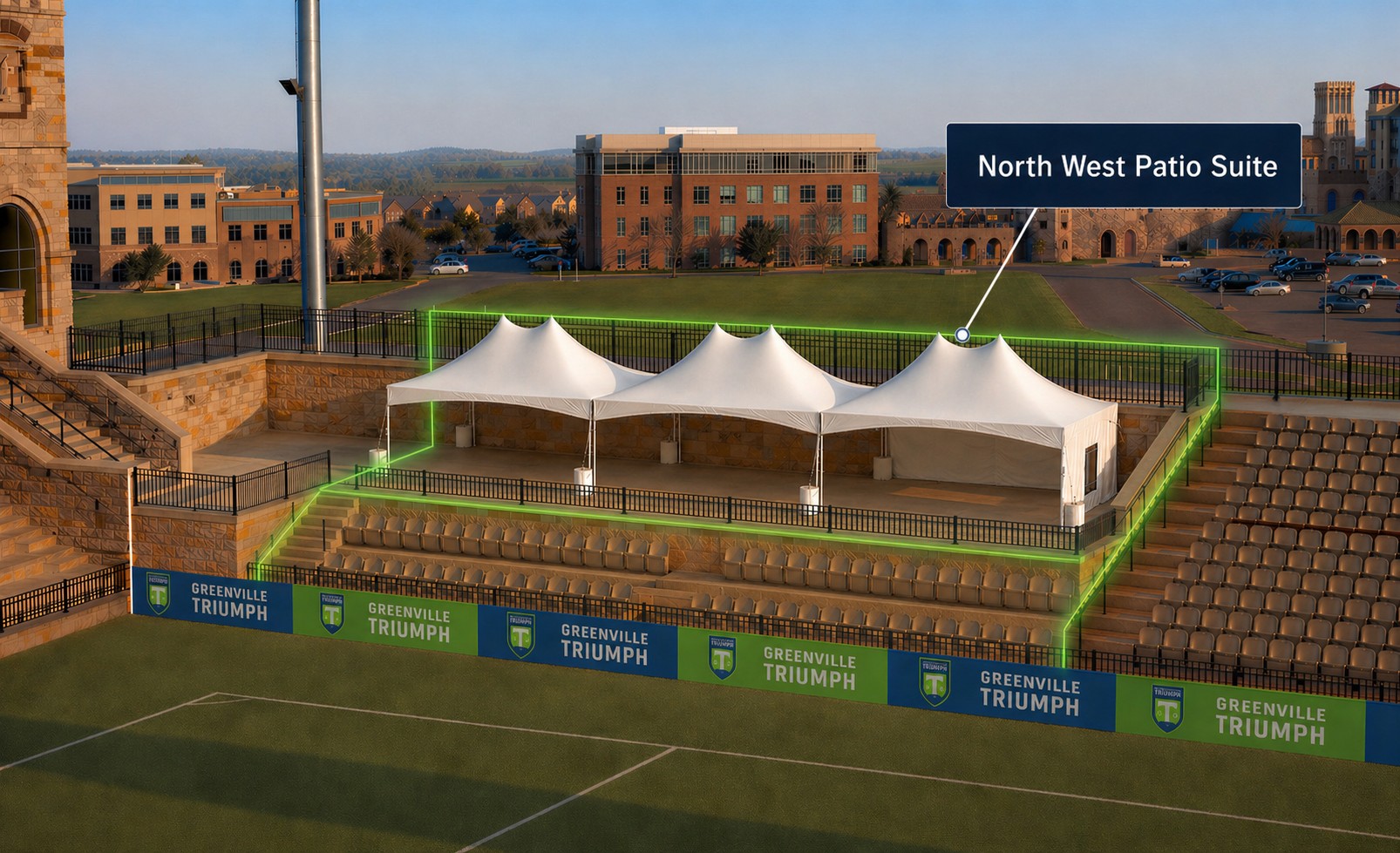

Parameters
| Dimensions |
15' × 57'8" |
| Gross Area |
~865 ft² |
| Furnishings |
Bar cart, buffet, high-tops |
| Usable Area Factor |
60–65% |
| Density Factor |
10 ft² / person |
Calculation Range
| Usable % |
Usable ft² |
Capacity |
| 60% |
~519 ft² |
~52 |
| 65% |
~562 ft² |
~56 |
Recommended
Standing Capacity
55 people
Similar depth constraint at 15', but far less total area. Buffet and bar cart infrastructure consume a proportionally larger share of the space. At 55 the experience stays exclusive, service flows smoothly, and the buffet line does not create a bottleneck. The smaller footprint also means any additional furniture has an outsized impact on usable area, every couch or extra high-top directly costs guest capacity.
Architect plan max. The architect diagram marks a smaller 386 ft² SRO zone (ADA pathways and clearance carveouts already removed) and, at a festival-density 5 ft²/person, yields a theoretical max of 78 standing: the outer bound, not a premium experience. Package math: the 100-ticket base is 60 seated + 40 standing; 15 additional SRO fills the patio to the comfortable 55 standing (115 total); 38 additional SRO is the hard cap at 78 standing (138 total).
Summary
| Space |
Format |
Gross ft² |
Usable % |
Density |
Calc. Range |
Recommended |
| South Stage |
Standing + seated mix |
1,989 |
60–65% |
10 ft² / person |
119–129 |
115–120 |
| North West Patio |
Standing + seated mix |
865 |
60–65% |
10 ft² / person |
52–56 |
55 |

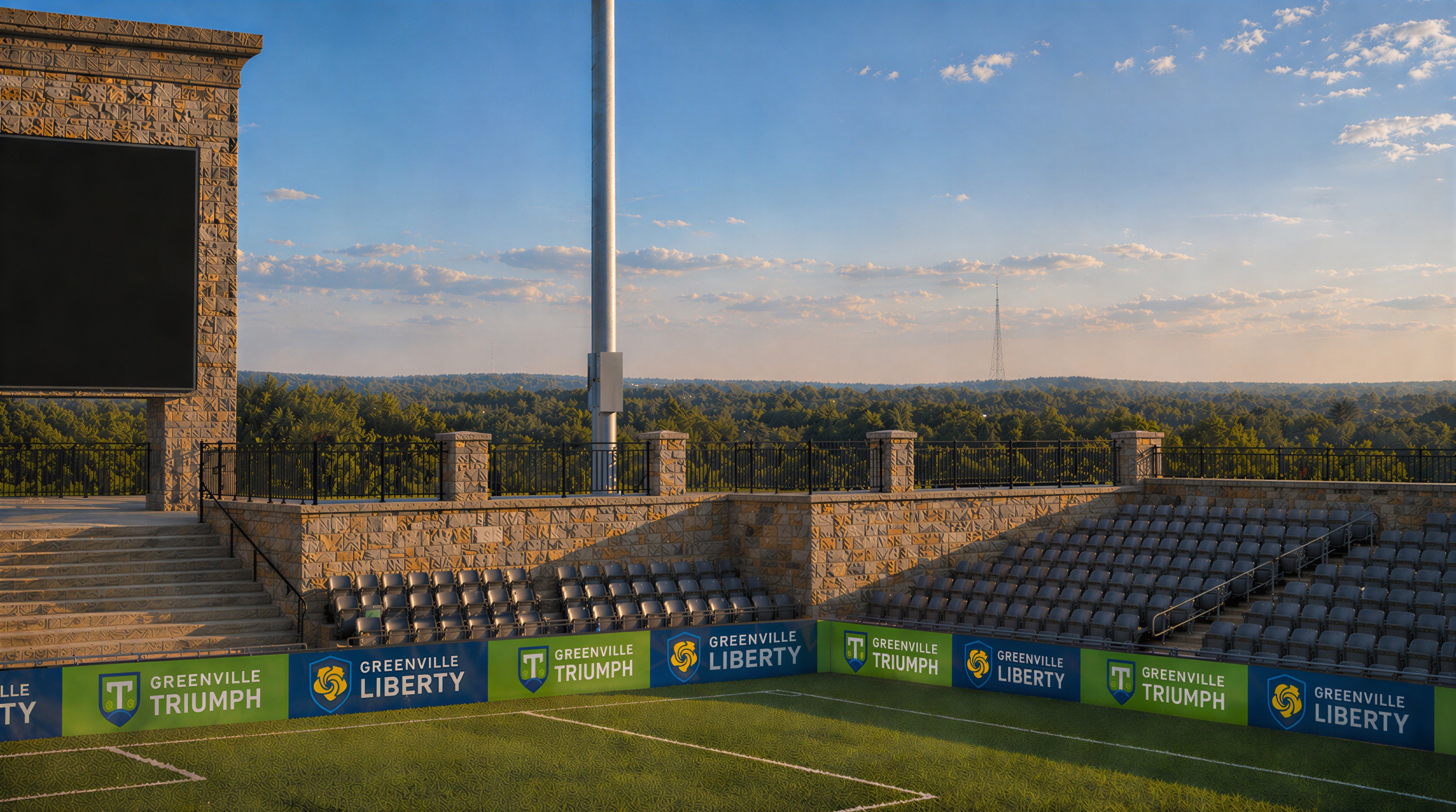

| Corner Club |
All seated |
n/a |
n/a |
n/a |
54 seats |
54 |
| South Field Tables |
All seated |
n/a |
n/a |
n/a |
16–20 seats |
16–20 |
Gross area reduced to 60–65% usable to account for furniture footprints, buffet stations with queue lanes, bar cart service zones, perimeter clearance, and egress paths. Density factor of 10 ft² per person applied to the standing-mixed spaces, consistent with industry standards for furnished premium hospitality. Recommendations skew conservative due to the narrow depth of both spaces (~14.5–15'), which amplifies the impact of furniture on circulation. Corner Club and South Field Tables are all-seated products, capacity fixed by seat count.
Note on authority. These are suggested operational capacities for planning purposes. Legal and posted occupancy is determined by the fire marshal or authority having jurisdiction (AHJ) and may differ. The AHJ may apply stricter density factors or require additional deductions, particularly for events with alcohol service or elevated crowd risk profiles. Before locking in a capacity number, confirm with the front office that the operational cap has been validated against the AHJ's posted occupancy load for each space.
